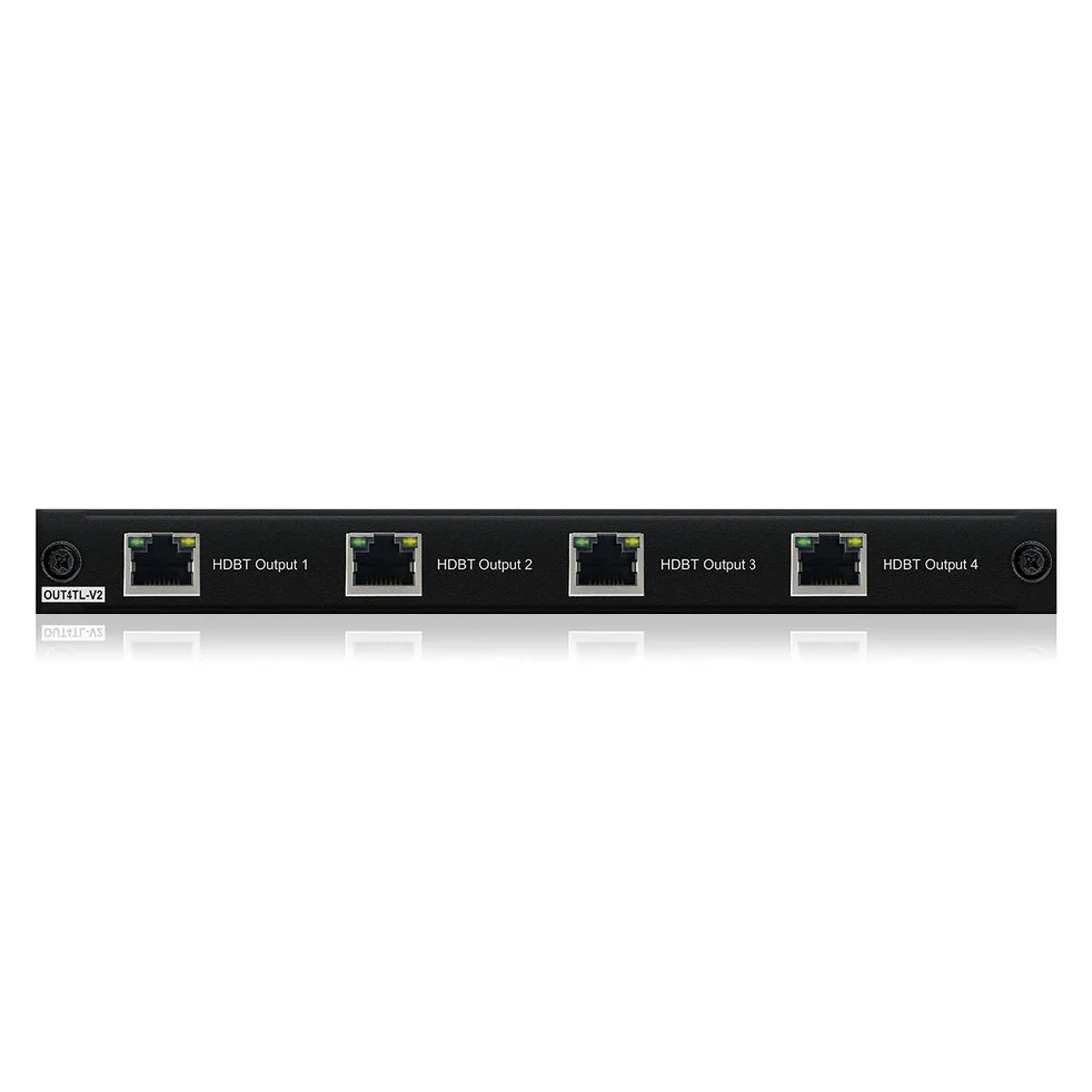

Blustream PRO-OUT4TL-V2 4-Way HDBaseT CSC Output Board

Blustream PRO-OUT4TL-V2 4-Way HDBaseT CSC Output Board

The Blustream PRO-OUT4TL-V2 is a 4-way HDBaseT output board for installation into the Custom Pro Matrix hub, providing four independent HDBaseT outputs with CSC for HDMI 2.0 4K 60Hz 4:4:4 (18Gbps), HDR and HDCP 2.2 distribution up to 40m, or 1080p up to 70m. Independent down-scaling enables lower-resolution displays to receive the signal while higher-definition displays show the maximum original 4K UHD resolution.

4K UHD Distribution with HDR and HDCP 2.2

This module supports HDMI 2.0 18Gbps video, delivering high-quality 4K signals across HDBaseT links.

• 4K 60Hz 4:4:4 UHD support up to 40m
• 1080p extension up to 70m
• Advanced Colour Space Conversion (CSC)
• HDR and HDCP 2.2 support

Independent Down-Scaling for Mixed Displays

Independent down-scaling on the CSC HDBaseT outputs allows displays that support lower resolutions to receive the signal while higher-definition displays show the maximum original 4K UHD resolution.

• Down-scales input resolutions up to 4K 60Hz 4:4:4 to:
  • 1080p 60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Integration and Installation

Designed for the Custom Pro Matrix platform, the PRO-OUT4TL-V2 offers straightforward integration and connectivity to compatible receivers.

• 4 x independent HDBaseT outputs for connection to compatible HDBaseT receivers
• Quick release card module fittings for simple population of input and output cards in the Custom Pro Matrix hub
• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Supports PoC to power Blustream HDBaseT receivers
• To be used with the HEX70CS-RX receivers
• Video output connectors: 4 x HDBaseT RJ45
• For HDMI 2.0 18Gbps video distribution, must be used with an HDMI 2.0 18Gbps Custom Pro input board

Audio Format Support

Supports bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications.

Frequently Asked Questions

• What outputs does the PRO-OUT4TL-V2 provide?

  It provides 4 x independent HDBaseT outputs, with video output connectors specified as 4 x HDBaseT RJ45.

• What video resolutions and distances are supported?

  It supports 4K 60Hz 4:4:4 UHD up to 40m and extends HDMI 1080p video up to 70m.

• Does it support HDR and HDCP 2.2?

  Yes. It supports HDMI 2.0 18Gbps with HDR and includes HDCP 2.2 support.

• Can it down-scale 4K inputs for displays that do not support full 4K?

  Yes. It offers independent down-scaling to 1080p 60Hz or 4K 60Hz 4:2:0 so lower-resolution displays can receive the signal while higher-definition displays show the maximum original 4K UHD resolution.

• Which receivers is it used with, and is power supported?

  It is to be used with HEX70CS-RX receivers and supports PoC to power Blustream HDBaseT receivers.

• Does it distribute audio as well as video over the CAT cable?

  Yes. Advanced HDBaseT technology offers distribution of video and audio over a single CAT cable.

• What is required for full HDMI 2.0 18Gbps distribution?

  Use the PRO-OUT4TL-V2 with an HDMI 2.0 18Gbps Custom Pro input board.
