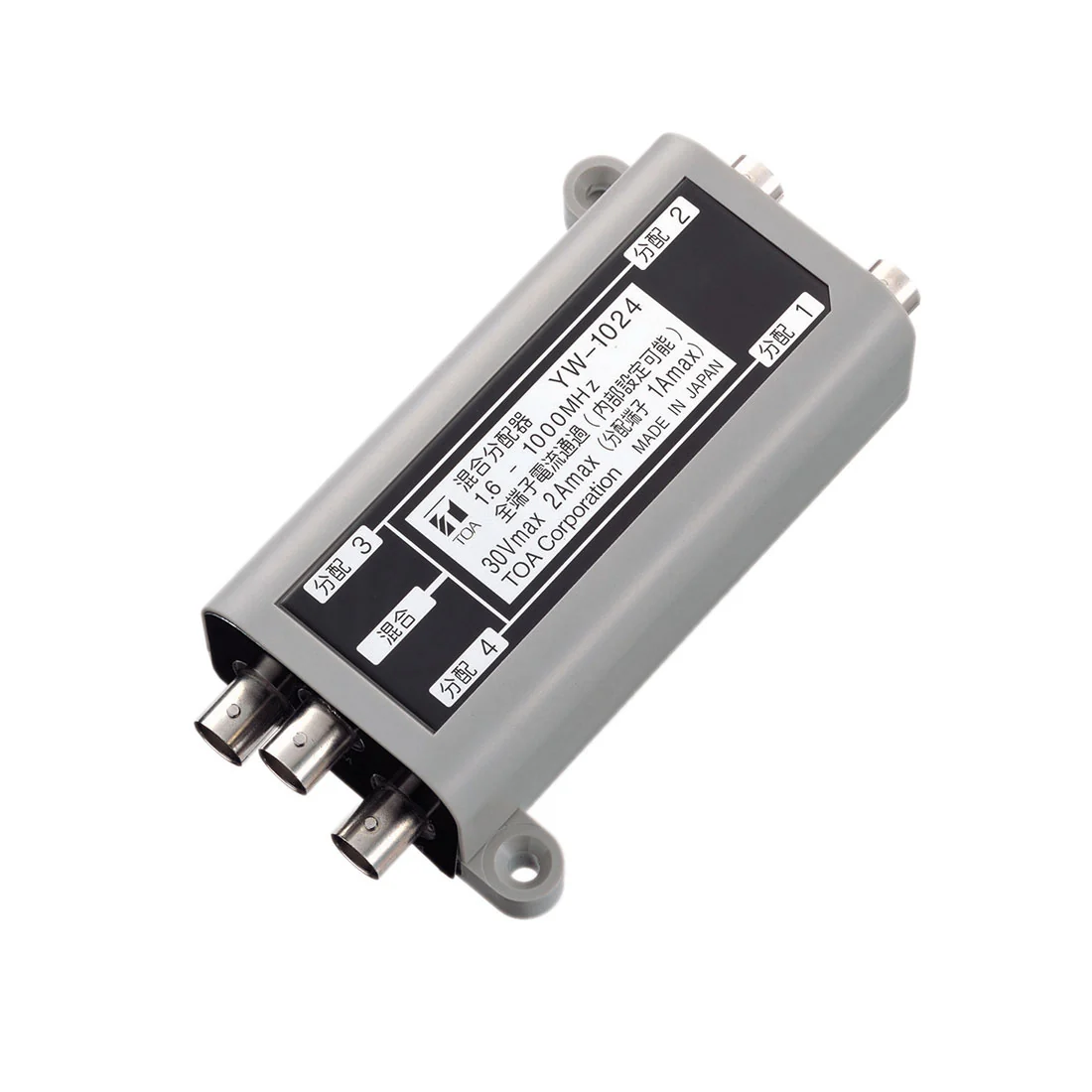

-65%TOA YW-1024 Antenna Distributor (YW1024 Y)ā
$332.20
$116.27The Story
TOA YW-1024 Antenna Distributor
The YW-1024 is a distributor that operates in the 1.6 to 1000 MHz frequency band (except 50 to 70 MHz). Power supply is made simple by power passing type.
Specifications
- Frequency Range: 1.6 - 1000 MHz (excluding 50 - 70 MHz)
- Distribution Loss: 8.5 dB Ā±3 dB (between the Mixing and each Distribution terminals)
- Input/Output Impedance: 75 ?
- Coaxial Connector: Mixing terminal: BNC jack, power passing type (30 V DC or less, 2 A or less) Distribution 1 - 4 terminals: BNC jack, power passing type (30 V DC or less, 1 A or less)
- Operating Temperature -10 ? to +50 ? (14 ?F to 122 ?F)
- Operating Humidity: 90 %RH or less (no condensation)
- Finish: ABS resin, gray
- Dimensions: 75 (W) Ć 122 (H) Ć 34 (D) mm (2.95" Ć 4.8" Ć 1.34")
- Weight: 120 g (0.26 lb)
- Accessory: Unit fixing wood screw (4.1 Ć 25) - 2
Ā
Description
TOA YW-1024 Antenna Distributor
The YW-1024 is a distributor that operates in the 1.6 to 1000 MHz frequency band (except 50 to 70 MHz). Power supply is made simple by power passing type.
Specifications
- Frequency Range: 1.6 - 1000 MHz (excluding 50 - 70 MHz)
- Distribution Loss: 8.5 dB Ā±3 dB (between the Mixing and each Distribution terminals)
- Input/Output Impedance: 75 ?
- Coaxial Connector: Mixing terminal: BNC jack, power passing type (30 V DC or less, 2 A or less) Distribution 1 - 4 terminals: BNC jack, power passing type (30 V DC or less, 1 A or less)
- Operating Temperature -10 ? to +50 ? (14 ?F to 122 ?F)
- Operating Humidity: 90 %RH or less (no condensation)
- Finish: ABS resin, gray
- Dimensions: 75 (W) Ć 122 (H) Ć 34 (D) mm (2.95" Ć 4.8" Ć 1.34")
- Weight: 120 g (0.26 lb)
- Accessory: Unit fixing wood screw (4.1 Ć 25) - 2
